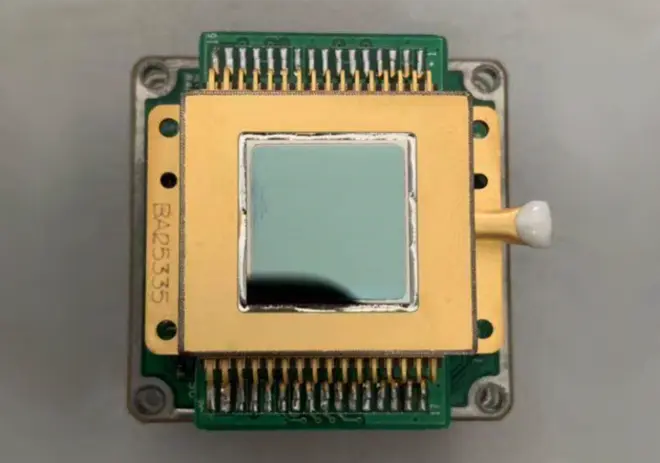

The PL640 uncooled infrared polarization camera uses a domestic uncooled 640 infrared focal plane detector, a high-performance infrared lens and a signal processing circuit, and is embedded with advanced image processing algorithms. It has the characteristics of small size, low power consumption, fast startup, and excellent imaging quality. The device selection fully considers the requirements of high and low temperature working performance to ensure that the whole machine has excellent environmental adaptability.

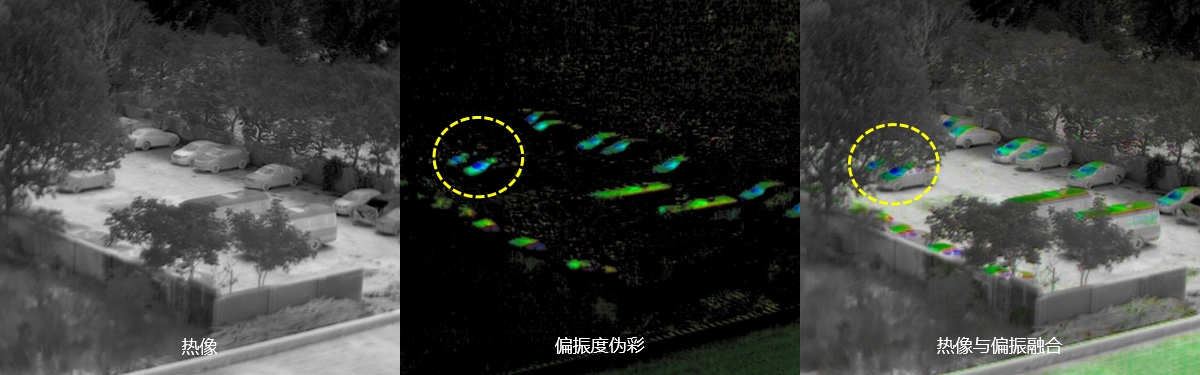

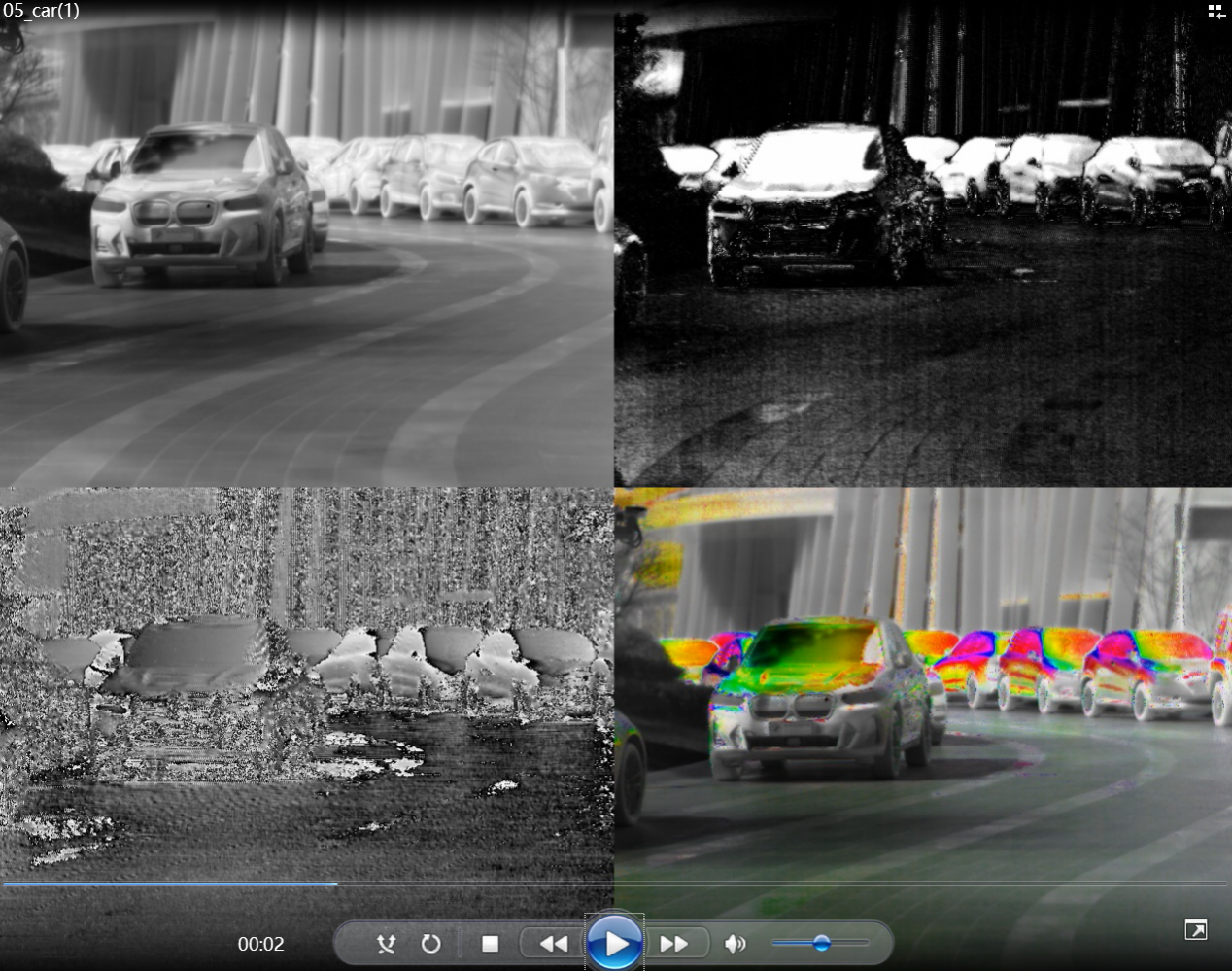

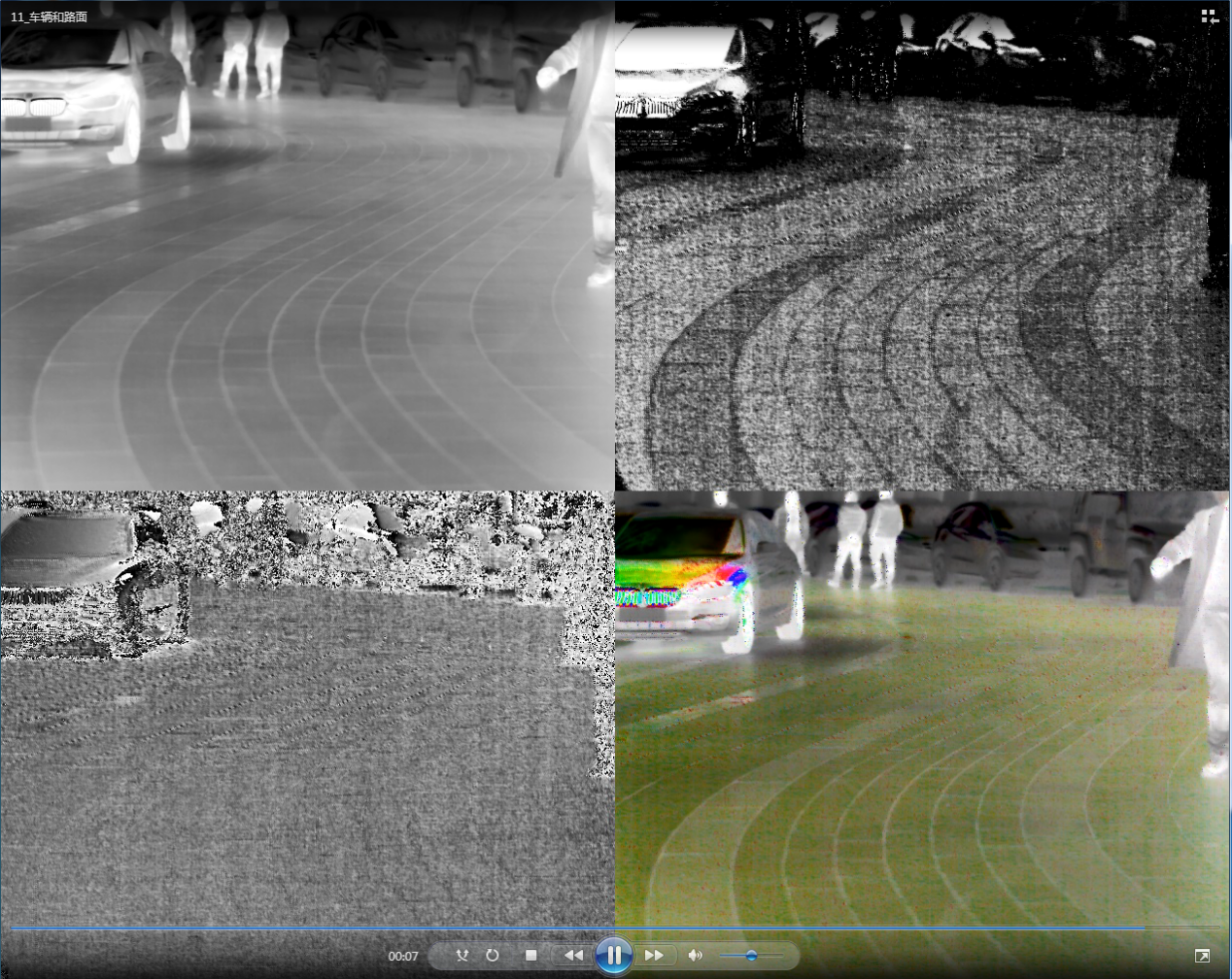

Infrared polarization imaging technology can distinguish man-made objects from natural objects by using the difference in polarization. This is because natural objects generally do not show polarization in the long-wave infrared band (except water). As for man-made objects, due to the smoothness of their materials and surfaces, most of them have partial polarization to varying degrees. Infrared polarization technology can easily distinguish the target (man-made object) from the background (natural object) by the difference in polarization.
Contact Us
Detector | |
Detector Type | Vanadium Oxide Uncooled Focal Plane Detector |
Number of pixels | 640 × 512 |
Pixel spacing | 1 7 μm |
Wavelength range | 8～14μm |
Thermal sensitivity (NETD) | ≤50mk@ 25 ℃ |
Frame rate | 50 Hz |
Polarization form | Built-in integrated |
Polarization direction | 0°, 45°, 90°, 135° |
Electrical characteristics | |
Data interface | Cameralink Interface |
Video Output | 1 channel analog video output, PAL system; 1-channel digital video output, camera link basic mode; |
communication method | UART, RS232 (choose one, UART default level 3.3V) |
Start Time | ≤6s |
power supply | Power adapter output |
Input power voltage | DC 6V ～ 15V |
Main control functions | Manual shutter correction, etc. |
Steady-state power consumption | < 1.8W |
Over-voltage and under-voltage protection | have |
Reverse polarity protection | have |
Environmental parameters | |
Operating temperature | -40 ℃ ～ + 60 ℃ |
storage temperature | -50 ℃～ + 70 ℃ |
humidity | ≤ 8 5% (non-condensing) |
Enclosure rating | IP54 |
Lenses | |
focal length | 25 mm (F#1.0) , can be adapted according to customer needs |
Focusing method | Fixed focus manual adjustment |
Field of view | 25 ° × 19 ° ( horizontal field of view × vertical field of view ) |
Spatial resolution | 0.68 mrad |
Physical properties | |

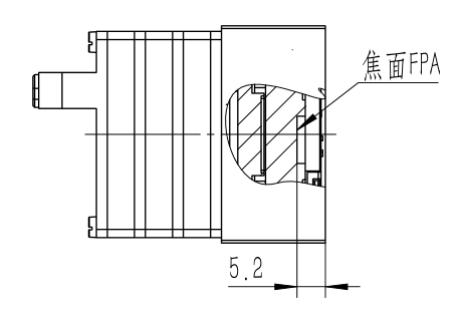

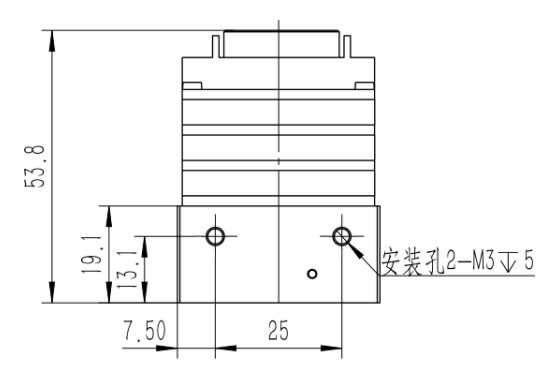

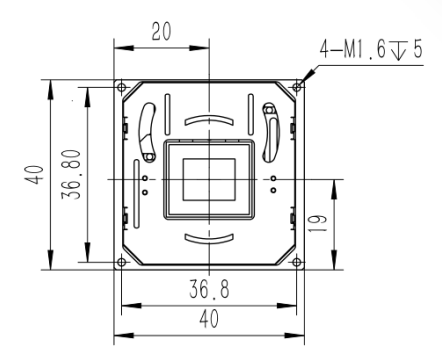

Dimensions | 40 mm × 40 mm × 54 mm ( without lens ) |
weight | ≤95 g |
Lens flange mounting hole | Two M 1.6 × 4 on each side |
Mounting interface | M3 threaded hole can be connected to a standard tripod bracket |
data storage | |
Video Saving | MPEG Compression |
Data saving format | AVI data and RAW data |
Supporting Software | |
Operating Environment | Support win32, x64 |
data collection | Host computer software V1.0 |
